How will I access my [service]'s data history from Amazon Athena?

DAP⇨flow

1. Access Amazon Athena

🖱 In your web browser, log in to your AWS account, navigate to the AWS Management Console, and open Amazon Athena.

👉 First time Amazon Athena users should start here ► 📚Amazon Athena

2. Understanding your Database [service zones]

REMINDER

👉 Your Service Terms[] are defined in your welcome document stored in your [service access group]'s **► ** Google Drive subfolder.

💡 Athena’s databases are catalogs pointing to physical data contained in AWS S3 storage buckets and folders, collectively known as an S3 data lake. Each storage bucket is divided up hierarchically from top to bottom, approximating to /zone, /service then /service database, with possible further levels in between. Below all that, are finally formed the /table folders where data is produced.

Tables in S3 are physically constructed from several identically specified and formatted Parquet data files, each slotted into a /yyyy/mm/dd/yyyymmdd partition subfolder structure, forming the generational history for all data added to tables.

(Additional /partition subfolder levels are allowed in between the /table and the generational history, but we are not going to worry about that here!)

💡 Athena’s database catalogs shall here be known as Database [service zones] which are named in the reverse "service-database-zone" format. The -zone suffixes of your [service zones] are expanded as follows:-

  • -raw-zone databases may contain, either...

    • tables repeatedly ingested from your [service database]. Table specifications depend upon the data maintained at the [service database] source.
    • tables ingested from a variety of other sources such as CSV files, spreadsheets or Google sheets. Table specifications may change often or may remain fixed over a longer period.
  • -refined-zone databases contain tables produced by data transformations in DAP⇨flow, or by Glue ETL in the past. Table specifications are implemented by Data Analysts and Data Engineers while developing their data transformations.

  • -trusted-zone databases contain the product tables. Product table specifications are declared by Service Data Analysts and Data Engineers working in collaboration with Service Data Users.

👉 For more information on how Amazon S3 organizes data, see ►here

🖱 Select the [service zones] with a -raw-zone suffix, associated with your [service database], from the list-box under "Database" on the left side of the Athena interface.

3. Explore the tables in your database

🖱 Beneath the "Database" section on the left of the Athena interface, expand the " Tables" section to find the list of tables available from your selected [service zones] database.

  • This is how Athena presents tables from the S3 data lake. In S3’s folder structure, tables are represented by folders below the service database folder.

  • When the S3 data lake was migrated to DAP⇨flow, the names of the daily-generated history tables were left completely unchanged. This was done to allow a phased transition from the old Data Platform Glue ETL jobs to the new DAP⇨flow transforms.

👁 Also found under each generational-history table listed under " Tables", you will observe a same-named table created with the suffix _latest. Please ignore those as we focus upon the generational-history here.

👉 Find the explanation of the _latest tables here ► 📚My current service data

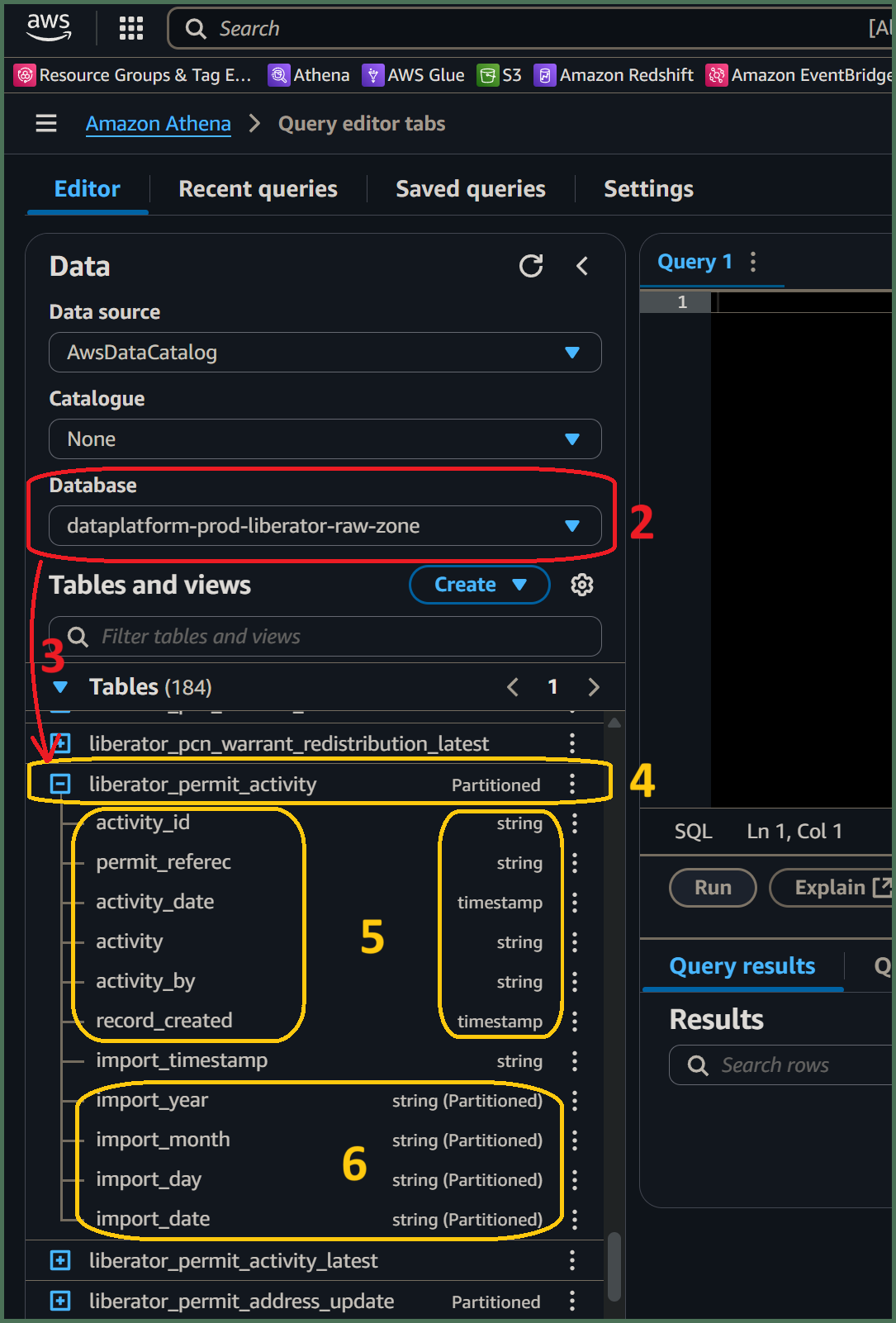

Fig. 2, 3, 4, 5 & 6 Fig. 2, 3, 4, 5 & 6

4. Expanding each generational-history table

🖱 Click on each table name to expand it to observe the complete list of columns for that table.

5. Verifying generational-history tables and columns

👁 Compare each table and its columns with the equivalent table and columns from your [service database] and observe how their names and data types match up with their original counterparts.

  • Occasionally the automatic data type translation will yield unexpected results. Always check columns to ensure no potential loss of data. For example, if integer precision is lost.

  • Be especially aware of date translations. Dates are sometimes transmitted in specialized formats, possibly numerical or possibly textual. If we’re unlucky these might require decoding to be made readable and useful in computations, especially when used in comparisons or joining of other tables.

6. Observing the partition columns

🖱 Scroll to the bottom of the column list to find the generational partition scheme, comprising four partition columns shown with the partition data type shown alongside eg. string (Partitioned).

👁 You will also notice the table name above, also shows Partitioned next to it.

💡 Traditional databases versus the S3 data lake

It helps to become familiar with the fundamental differences between a traditional database and an S3 data lake that records the entire generational history of data ingested from external database sources.

  • Because tables are ingested or otherwise transformed daily (the most common generational frequency), each table folder, in the S3 data lake, must be subdivided by it's generational history, so the underlying technology of the data platform can quickly access either current data, or some specified previous data.

  • Generational history is organized hierarchically using S3 subfolders to represent the following partition-column date strings:

    • Year eg. import_year eg. ‘2024’ (the current year)
    • Month eg. import_month eg. ‘06’ (the current month eg. June)
    • Day eg. import_day eg. ‘05’ (5th day of the current month)
    • Date eg. import_date eg. “20240605” (5th June 2024)

    By convention, we observe import_ prefixed partition names in all our -raw-zone databases, but we might also see other transform_ or generation_ prefixes in other zone databases which comply with these exact same generational history principles even if they break with the naming convention.

  • We might observe additional partition columns that subdivide ingested data in some other useful way, eg. an open or closed flag based upon record end-date, that facilitates governance of data that we know should never change in future generations. (But we are not going to worry about that here!)

👉 So that Data Analysts are not overwhelmed by the generational history partitioning scheme, and can avoid using complex generational sub-queries in their transformations, a simpler solution for writing Athena SQL transforms was developed and implemented here ► 📚Prototype simple transforms

👉 This Generational history partitioning scheme was fully supported for the old Glue/Spark SQL queries while they were migrated to DAP⇨flow's Athena SQL transforms described here ► 📚Migrating transforms
